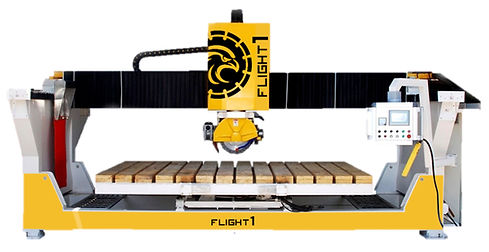

Flight1



The Flight1 bridge saw has a compact and precise mono-block design which keeps the foot print relatively small and makes for simple installation.  This is a powerful saw that allows you, through a simple Siemens controler, to set up multiple X and Y axis cuts.  This is huge time saver and creates a highly efficient work atmosphere.





 Specifications:

• Dimensions: W: 224" x D: 123" x H: 118.5"

• Weight: 13,228 Lbs

• Power: 20 Hp

 • RPM: 1,440

• Table Size: 130" x 78"

• Blade Stroke: 130"

• Blade Size 16" - 18"

• Maximum cutting depth 3.9"



 Features:

• Mono-block design

• Rotating Head to 90º

• Wireless remote

• Siemens touch PLC controller

• Programable cuts in X and Y axis

• Miter cuts - automatic hydraulic control

• Tilting table to 85º

• Rotating table 360º





Flight1 Bridge Saw features video (Length: 2 min.)
